CA-620
reliable, robust coagulation testing
- Runs main clinically important clotting analyses
- Easy to use, up to 60 samples/hour
- Dedicated interface to Sysmex’s online services
- Colour LCD touch screen and integrated barcode reader
- Robust analyser that will serve you for years

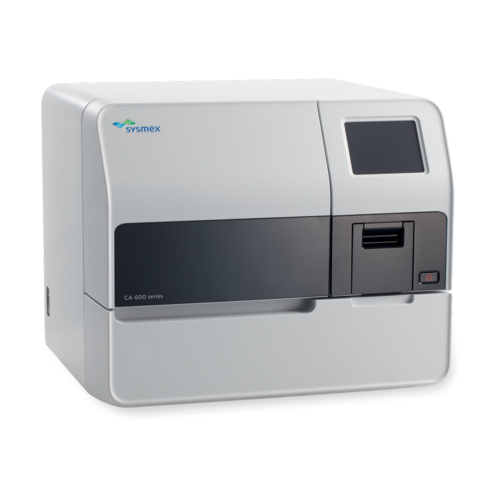

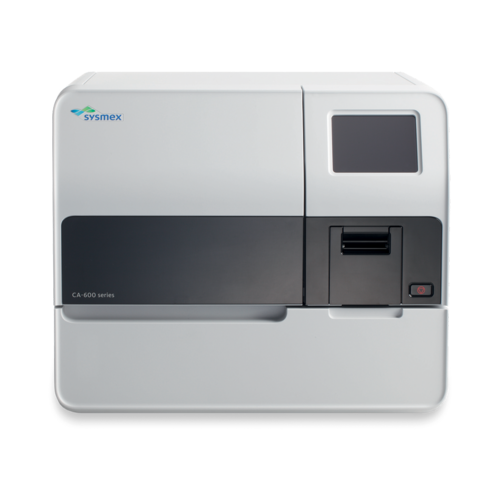

The CA-620 is a compact, fully automated coagulation analyser. It combines proven and successful characteristics – such as the optical detection technology and the reagent system of its predecessors ‒ with new features. It is great as a primary analyser for routine coagulation testing in low-volume haemostasis laboratories. Or as a powerful backup instrument in a larger lab. The CA-620 has a solid construction in line with our advanced Silent Design concept, is hardwearing and robust. And with its reliable performance, it will support you day in, day out, for years to come.
| Detection principles | clotting: scattered light detection method |
| No. of detector channels | clotting: 4 channels |
| Parameters | clotting PT, APTT , Fbg, TT , Coagulation Factor Assays (II, V, VII, Viii, IX, X, XI, XII ), Lupus Anticoagulant (screening and confirmation), Protein C, Batroxobin |
| Throughput | max. 60 tests per hour |
| Test protocols | up to 14 programmable |
| STAT | 1 dedicated position |
| Sample volumes |
|
| Reagent capacity | 13 positions (4 cooled and 3 dedicated to diluents, buffers or cleaning reagents) |
| Quality control | xbar / L-J control: 6 files at 180 points, 14 parameters |
| Data storage | up to 600 samples / max. 3,000 tests |
| Interfaces |
|
| Dimensions/weights main unit | w x h x d [mm] / [kg] 566 x 490 x 490 / approx. 42 |
