XQ-520
World-leading haematology no matter where
- Twenty parameters including a dedicated neutrophil count
- Only 16 µL aspiration volume
- Optional manual discrimination within histograms for challenging samples
- Flagging system with 20 IP messages for more insight into the sample
- Very little maintenance – only one weekly shutdown

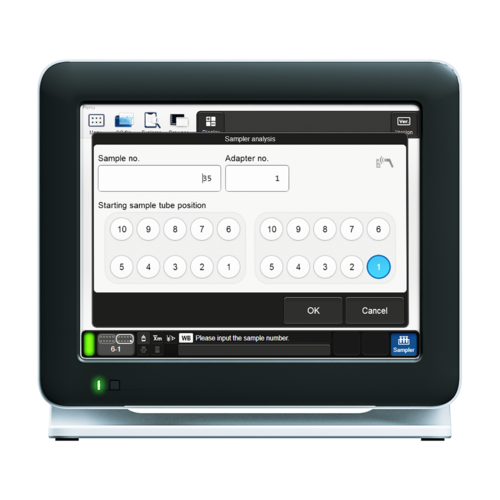

- 2x10-vials sampler for walk-away operation or continuous loading
Whether your haematology testing takes place in a laboratory, a physician’s practice lab, on a hospital ward or in any other rapid-response diagnostic setting, it should always be excellent.

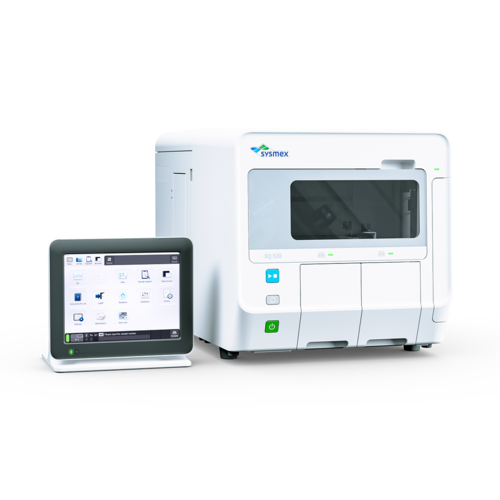

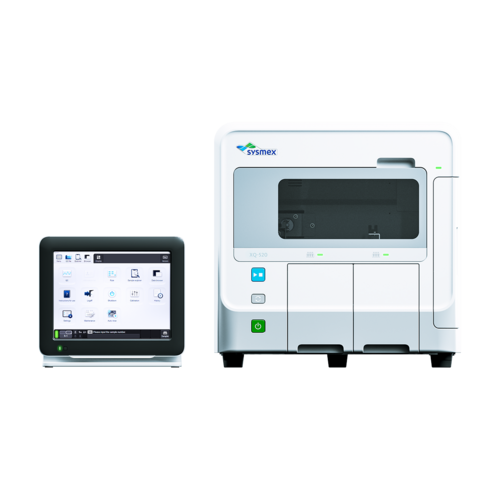

XQ-520 is the new closed tube three-part differential analyser from Sysmex with two independent samplers that can be loaded individually for continuous operation. Further, samples in single closed tubes or microtubes can be easily measured as well.

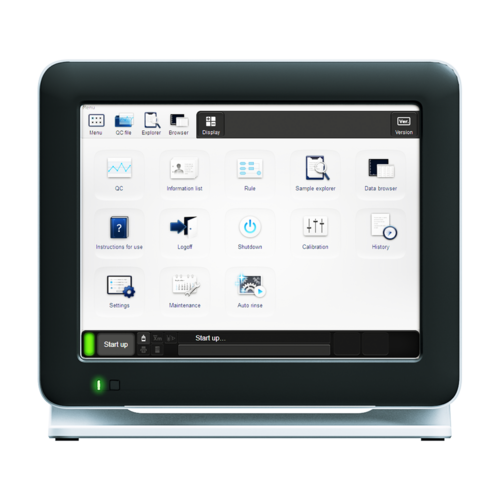

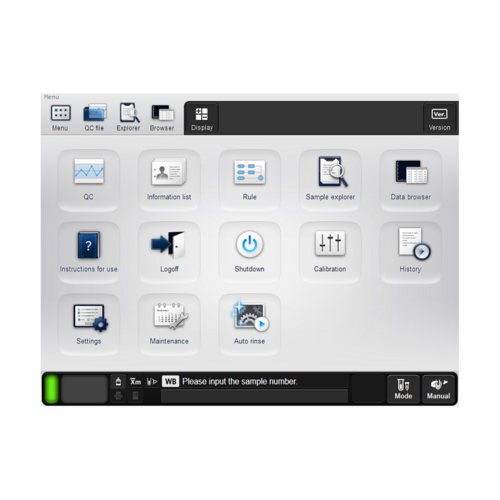

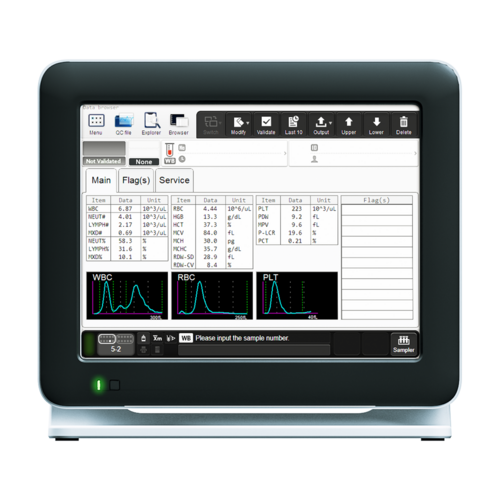

Numerical values, histograms and flags on one screen enable a convenient result interpretation while the advanced QC settings of XQ-520 support you in fulfilling your regulatory requirements.
| Model name / configuration | XQ-520 / stand-alone sampler model |
| Measurement principles | DC detection method (WBC, RBC/PLT) non-cyanide haemoglobin detection method (HGB) |
| Aspiration volume | 16 μL in whole blood mode, 65 μL in pre-dilution mode |
| Throughput | 65 samples/h |
| Parameters | 20 diagnostic parameters in whole blood mode and pre-diluted mode: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYMPH% (W-SCR), MXD% (W-MCR), NEUT% (W-LCR), LYMPH# (W- SCC), MXD# (W-MCC), NEUT# (W-LCC), RDW-SD, RDW-CV, PDW, MPV, P-LCR, PCT |
| Quality control | 99 files with 300 data sets and Levey–Jennings charts (internal QC) Optional: Caresphere™ XQC online interlaboratory comparison based on internal QC Patient sample-based quality control (XbarM) |
| Dimensions /weight [w x h x d] | approx. 450 x 450 x 660 mm / 41 kg |
